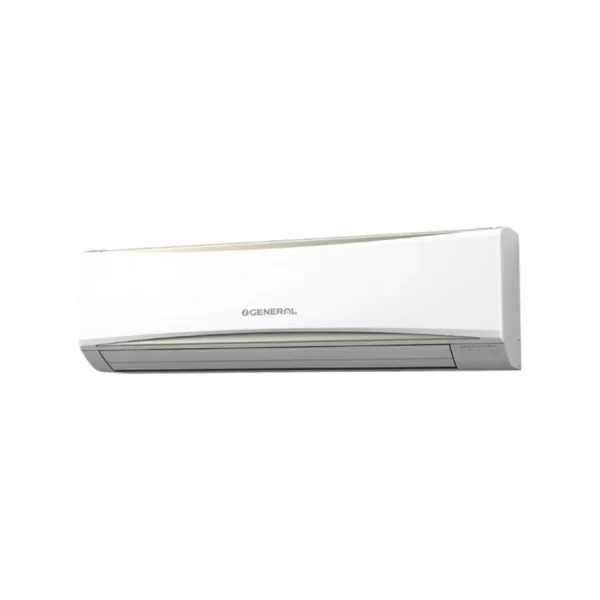

ASGH30CXTA-U/AOGH30CXTA-U model cooling capacity is 6.98 kW. The input power for cooling is 2.43 kW. The current for cooling operation is 10.9 A. The Energy Efficiency Ratio (EER) for cooling is 9.79 Btu/hW. The moisture removal rate is 2.7 liters/h. The airflow rate on super high setting is 1,520 cubic feet per minute. The net dimensions for the indoor unit are 340 × 1,150 × 289 mm with a weight of 16 kg (35 lbs). The outdoor unit has dimensions of 788 × 940 × 320 mm and weighs 53 kg (177 lbs). The refrigerant used is R32, and the connection method is flare.
Specifications:
- Capacity Class: 30,000 Btu/h
- Capacity (Cooling): 6.98 kW
- Capacity (Cooling): 23,800 Btu/h
- Power Supply (V-Ph-Hz): 230V~1-50
- Input Power (Cooling): 2.43 kW
- Energy Label: 3
- Current (Cooling): 10.9 A
- EER (Cooling): 9.79 Btu/hW
- Moisture Removal: 2.7 liters/h
- Airflow Rate (Super High): 1,520 m3/h
- Net Dimensions (Indoor): 340 × 1,150 × 289 mm
- Net Dimensions (Outdoor): 788 × 940 × 320 mm
- Refrigerant: R32
- Connection Method: Flare
